Reinheldt Autoclave

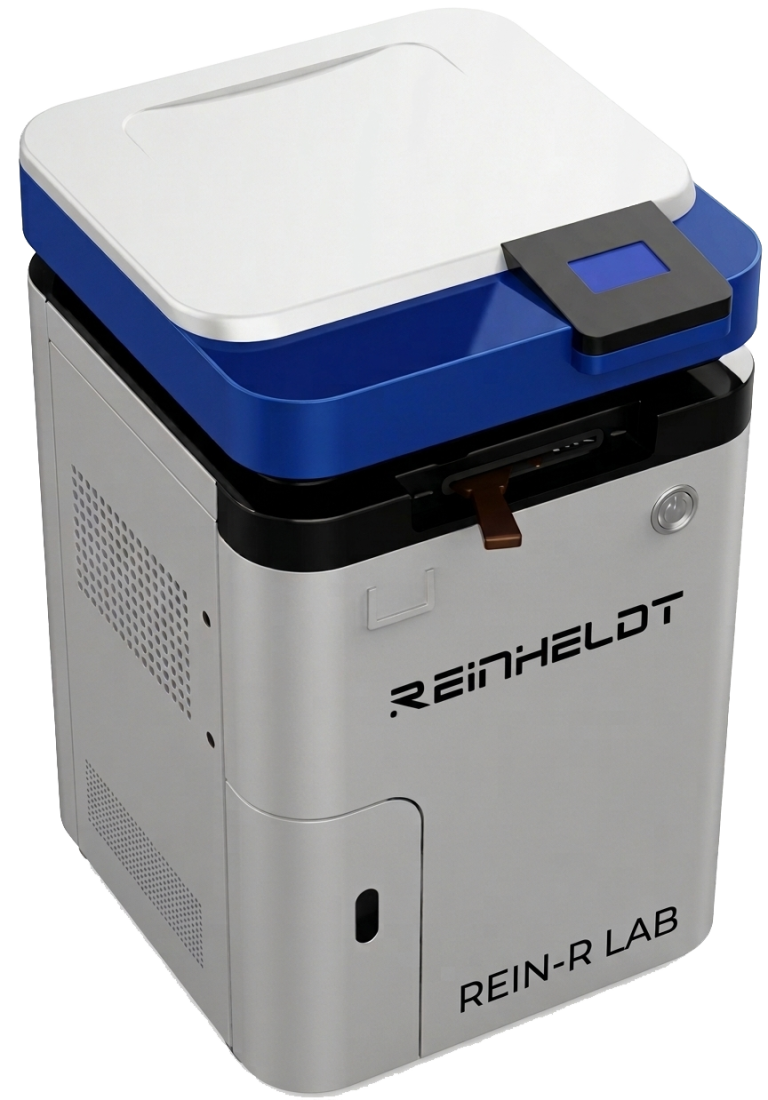

Rein-R Lab Steam Sterilizer Series

Advanced Automation and Safety for Critical Environments

The Rein-R Lab Steam Sterilizer Series is a high-performance autoclave solution engineered for university, pharmaceutical, and medical laboratories. Designed for maximum efficiency and safety, the system features a “humanized” microcomputer operating system with an LCD display and a reliable automatic door structure utilizing multi-point synchronization. A key advantage of this series is its clean operation; it employs a built-in 5L gas collecting bottle and condensation system to ensure zero steam discharge during the sterilization process. The unit offers exceptional versatility with 108 programs—including specific settings for solid waste, culture media, and liquids—and is protected by a comprehensive safety suite that includes door interlocks, over-temperature protection, and double anti-dry mechanisms. With optional upgrades such as rapid cooling and double temperature control, the Rein-R Series delivers precise, secure sterilization for a wide range of laboratory materials

Reinheldt Autoclave Download Brochure

Key Performance Features

Intelligent Design & Operation

Humanized Operating System: Features microcomputer automatic control with an LCD display and induction buttons for intuitive observation of equipment and process information.
Automatic Door Structure: Utilizes multi-point synchronization linkage technology for a reliable seal, allowing for quick, one-button opening.
Water Quality Monitoring: An integrated system monitors water quality and alarms when quality is poor.
Exhaust Control: Flexible ventilation allows users to adjust control parameters and exhaust speeds (fast, slow, or no row) based on process requirements.
Clean & Contained
- No Steam Discharge: A steam condensation system ensures the process can be achieved without steam exhaust by adjusting exhaust speed parameters.
- Built-in Gas Collecting Bottle: Equipped with a 5L gas collecting bottle to ensure internal steam circulation.
Versatile Programming
The system includes 108 total programs (8 preset and 100 custom) covering:
- Laboratory Series: Solid procedures, solid waste, culture medium, liquid, and agar programs.
- Medical Series: Bare, packaging, and rubber programs.
- Custom Series: Allows user-defined parameters to avoid frequent modifications.

Comprehensive Safety Systems

The Rein-R Lab Autoclave prioritizes operator safety with a comprehensive lock and protection suite:

Door Safety Interlock: The program cannot start unless the door is locked. Conversely, if internal pressure exists or power is disconnected, the door opening mechanism remains locked.
Cooling Lock: Prevents the door from opening if liquid exceeds safe temperatures, avoiding splash risks or burst bottles.
Double Anti-Dry Protection: A water level monitoring system and an anti-dry thermostat automatically cut off heating and alarm in case of water lack.
Over-Temperature & Pressure: The system cuts power if temperatures exceed limits and automatically releases pressure via a safety valve if safe levels are breached.
Electronic Safety: Includes AC main circuit safety protection and over-voltage overload protection.

Optional Upgrades & Customization

Enhance your sterilizer with these optional functions:

Rapid Cooling Function: An optional system that reduces cooling time by 80%, improving efficiency.
Double Temperature Control: Uses a mobile sensor to detect load temperature, ensuring consistency between the interior and exterior of the load (vital for liquids with high thermal inertia).
Drying System: A thermal drying system effectively dries objects post-sterilization.
Sealed Liquid Sterilization: Hardware and software configurations allow for the sterilization of airtight liquids (glass bottles, soft bags).
Data Storage: Options include a micro thermal printer, U-disk storage with parsing software, or remote monitoring via a matching PAD.
